520 is a steel touring bike made for the open road. It's the longest-running model in our line-up, and it's built to carry you and your gear on your longest journeys.
520 is a steel touring bike made for the open road. It's the longest-running model in our line-up, and it's built to carry you and your gear on your longest journeys.
Trek

Trek 520 Touring Bike in Red

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns




Please contact us on 01382 666644 if you would like to return an item.


For Distance (online & Mail Order) Selling:

Under the Consumer Contracts Regulations 2014, a customer is allowed to return an item if they simply change their mind. A customer has the right to cancel at any time from the moment they place their online order, and up to 14 days from the day they receive the goods.The customer then has a further 14 days from the date they notify the retailer of their cancellation to return the goods. -There are exemptions to online returns which include tailor made/personalised goods.

For Faulty Goods:

Under the Consumer Rights Act 2015, a customer has an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. This right is limited to 30 days from the date the customer took ownership of the goods. If an item is faulty and needs to be returned, the customer does not need to pay postage costs for the return of the faulty item.If a customer is asked to return an item that arrived damaged, not as described or faulty, the retailer should refund the total cost of the return."

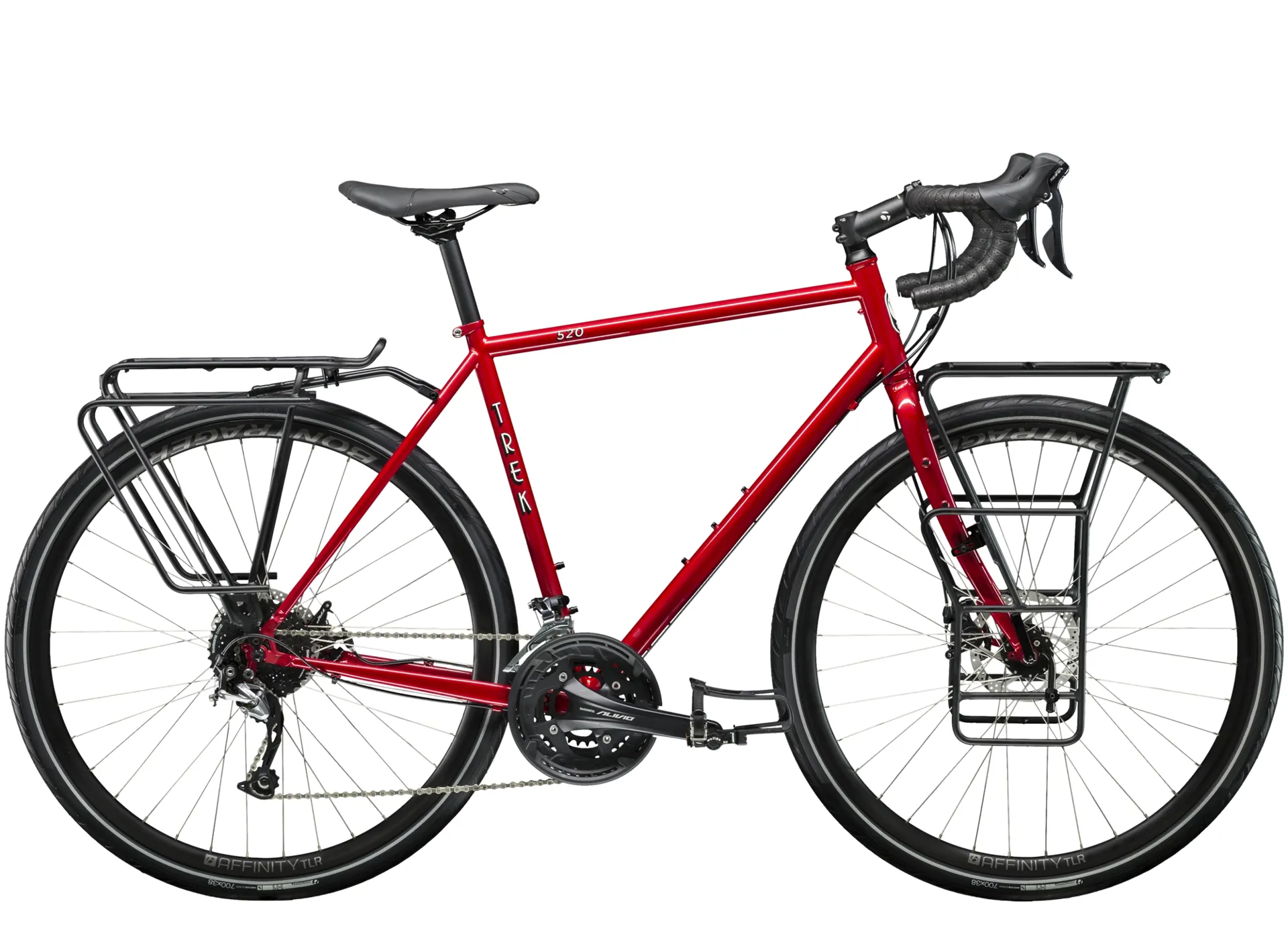

Trek 520 Touring Bike in Red

Brand:Trek

Code:240002020DiabloRED

520 is a steel touring bike made for the open road

It's the longest-running model in our line-up, and it's built to carry you and your gear on your longest journeys. Rack and mudguard mounts, a wide range of gearing for climbing and a stable touring geometry make it the perfect choice for loaded multi-day trips and comfortable all-day adventures.

Features:

  • It's right for you if...
    You measure the success of a ride in the number of beautiful views, and when you're not riding, you're likely to be found planning your next escape. You hear the call of the open road and want a stable touring bike that's just as capable of carrying a heavy load on multi-day trips as it is on everyday rides.
  • The tech you get
    A road-smoothing chromoly steel frame, alloy disc touring fork with a ThruSkew captured quick release skewer, wide-range 27-speed drive train that's great for hauling a heavy load up hills, Shimano Sora brake/shift levers, Bontrager Tubeless Ready wheels, puncture-resistant tyres with reflective sidewalls, included front and rear racks, and all-weather mechanical disc brakes.
  • The final word
    520 is a comfortable steel workhorse that's capable of everything from daily rides to expedition tours. It's ready for adventure straight out of the box, with an included front and rear rack and a drive train that's ideal for hauling a heavy load.
Technical Information
  • Frame
    Trek butted chromoly disc touring, rack and mudguard mounts, 135x5 mm QR
  • Fork
    520 alloy disc touring, rack mounts, 100x5 mm ThruSkew
  • Feder/rack mounts
    Bontrager BackRack Deluxe, Interchange compatible, size small
  • Front hub
    Shimano M475, 6-bolt disc, 100x5 mm QR
  • Front skewer
    Trek ThruSkew
  • Rear hub
    Shimano M475, 6-bolt disc, 135x5 mm QR
  • Rim
    Bontrager Affinity Disc, Tubeless Ready, 36-hole, 21 mm width, presta valve
  • Spokes
    14 g stainless steel, silver
  • Tyre
    Bontrager H1 Hard-case Ultimate, 700x38c w/reflective sidewall
  • Shifter
    Size: 48, 51, 54, 57, 60, 63
    Shimano Sora R3000, 9-speed

    Size: 48, 51, 54, 57, 60, 63
    Shimano Sora R3030, 3-speed
  • Front derailleur
    Shimano Sora R3030, 34.9 mm (w/28.6 adapter) clamp
  • Rear derailleur
    Shimano Alivio M4000, long cage, 36T max cog
  • Crank
    Size: 54, 57, 60, 63
    Shimano Alivio T4060, 48/36/26, 2-piece w/chain guard, 175 mm length

    Size: 48, 51
    Shimano Alivio T4060, 48/36/26, 2-piece w/chain guard, 170 mm length
  • Cassette
    Shimano HG200, 11-36, 9-speed
  • Chain
    KMC X9
  • Pedal
    Wellgo nylon body, alloy cage
  • Saddle
    Bontrager Evoke
  • Seatpost
    Size: 48
    Bontrager alloy, 27.2 mm, 12 mm offset, 250 mm length

    Size: 51, 54, 57, 60, 63
    Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
  • Handlebar
    Size: 48
    Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width

    Size: 51, 54
    Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width

    Size: 57, 60, 63
    Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
  • Handlebar tape
    Bontrager Gel Cork tape
  • Stem
    Size: 48
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length

    Size: 51
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length

    Size: 54, 57
    Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length

    Size: 60, 63
    Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
  • Head set
    1-1/8" threadless, sealed cartridge bearings
  • Brake
    TRP Spyre C 2.0 mechanical disc, 160 mm rotor
  • Cargo rack
    Size: 48, 51, 54
    Bontrager BackRack Deluxe, Interchange compatible, size small

    Size: 48, 51, 54, 57, 60, 63
    Bontrager Carry Forward

    Size: 57, 60, 63
    Bontrager BackRack Deluxe, Interchange compatible, size large
  • Weight
    57 - 14.26 kg / 31.44 lb
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
