The Checkpoint ALR 4 introduces you to the exciting new frontier of gravel riding at a value that can't be matched
The Checkpoint ALR 4 introduces you to the exciting new frontier of gravel riding at a value that can't be matched
Trek

2021 Trek Checkpoint ALR 4 Gravel Bike in Blue

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns




Please contact us on 01382 666644 if you would like to return an item.


For Distance (online & Mail Order) Selling:

Under the Consumer Contracts Regulations 2014, a customer is allowed to return an item if they simply change their mind. A customer has the right to cancel at any time from the moment they place their online order, and up to 14 days from the day they receive the goods.The customer then has a further 14 days from the date they notify the retailer of their cancellation to return the goods. -There are exemptions to online returns which include tailor made/personalised goods.

For Faulty Goods:

Under the Consumer Rights Act 2015, a customer has an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. This right is limited to 30 days from the date the customer took ownership of the goods. If an item is faulty and needs to be returned, the customer does not need to pay postage costs for the return of the faulty item.If a customer is asked to return an item that arrived damaged, not as described or faulty, the retailer should refund the total cost of the return."

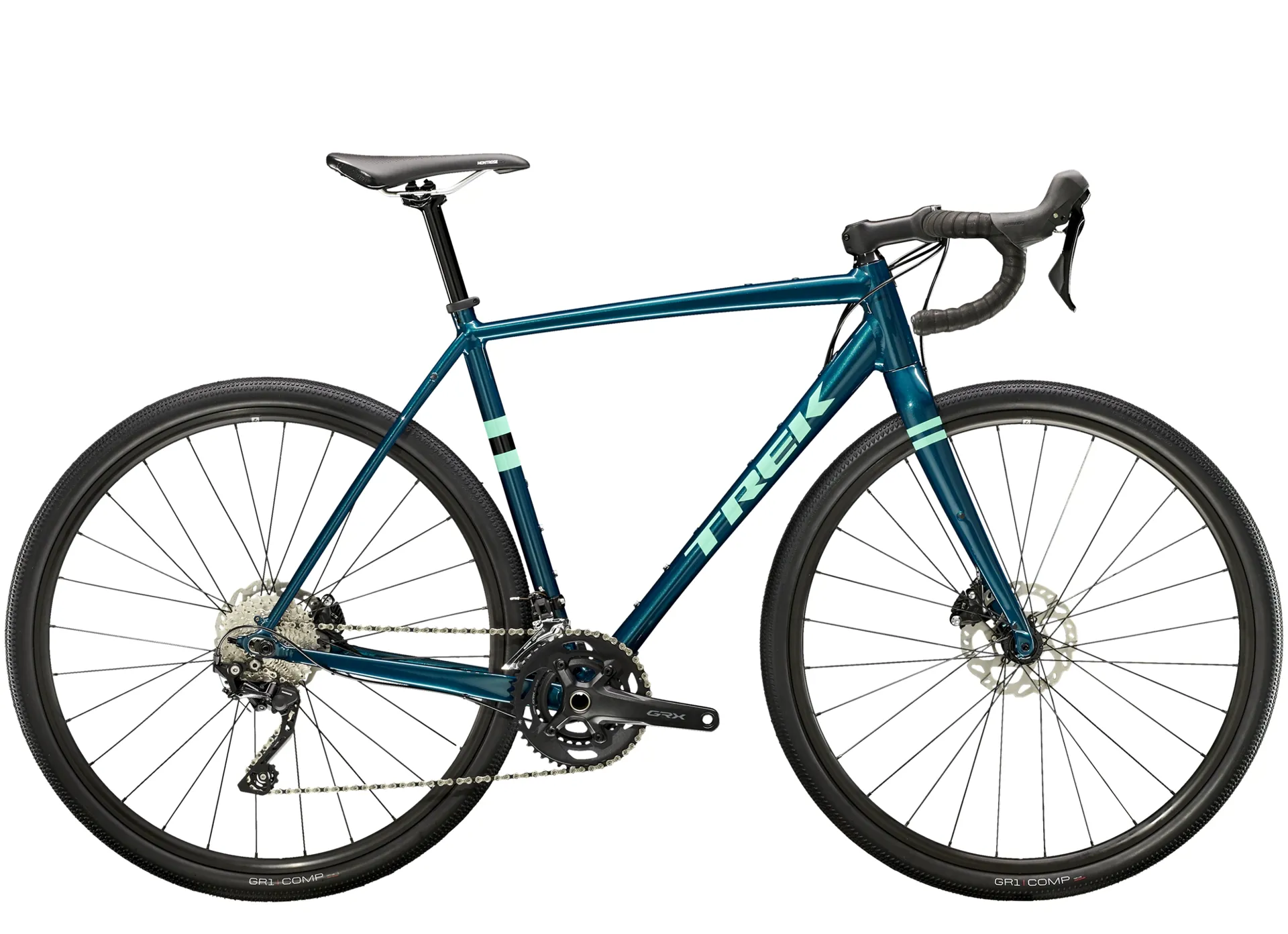

2021 Trek Checkpoint ALR 4 Gravel Bike in Blue

Brand:Trek

Code:325562021AQUtic

The Checkpoint ALR 4 introduces you to the exciting new frontier of gravel riding at a value that can't be matched

This bike is exceedingly versatile and suited to a wide variety of riding styles, including gravel rides, bikepacking and daily commutes. Mounts on the seat tube and both sides of the down tube make it easy to carry extra gear and water. Massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions.
Technical Information
  • Frame
    300 Series Alpha Aluminium, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and mudguard mounts, flat-mount disc, Stranglehold dropouts, 142x12 mm thru axle
  • Fork
    Checkpoint carbon, tapered alloy steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Front hub
    Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Rear hub
    Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
  • Rim
    Bontrager Tubeless Ready, 28-hole, 17 mm width, Presta valve
  • Spokes
    14 g stainless steel
  • Tyre
    Bontrager GR1 Comp, wire bead, 60 tpi, 700x40 c
  • Shifter
    Shimano GRX RX400, 10-speed
  • Front derailleur
    Shimano GRX RX400, braze-on
  • Rear derailleur
    Shimano GRX RX400, long cage, 36T max cog
  • Crank
    Size: 49, Shimano GRX RX600, 46/30, 165 mm length
    Size: 52, Shimano GRX RX600, 46/30, 170 mm length
    Size: 54/56, Shimano GRX RX600, 46/30, 172.5 mm length
    Size: 58/61, Shimano GRX RX600, 46/30, 175 mm length
  • Bottom bracket
    Shimano RS500, 92 mm, PressFit
  • Cassette
    Shimano Tiagra HG500, 11-34, 10-speed
  • Chain
    KMC X10
  • Saddle
    Bontrager Montrose Comp, steel rails, 138 mm width
  • Seatpost
    Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar
    Size: 49, Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 38 cm width
    Size: 52, Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 40 cm width
    Size: 54/56, Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 42 cm width
    Size: 58/61, Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 44 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
    Size: 49, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
    Size: 52/54, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
    Size: 56/58, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
    Size: 61, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
  • Head set
    FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Brake
    Shimano RX400 hydraulic disc
  • Brake rotor
    Shimano SM-RT70, 160 mm, CenterLock
  • Weight
    56 - 10.26 kg / 22.62 lbs
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
