The Allant+ 5 Lowstep is the ultimate e-bike for riders looking to accelerate their commute.
The Allant+ 5 Lowstep is the ultimate e-bike for riders looking to accelerate their commute.
Trek

Trek Allant+ 5 2023 Lowstep 545wh Electric City Bike in Blue Sage

£3,150.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns




Please contact us on 01382 666644 if you would like to return an item.


For Distance (online & Mail Order) Selling:

Under the Consumer Contracts Regulations 2014, a customer is allowed to return an item if they simply change their mind. A customer has the right to cancel at any time from the moment they place their online order, and up to 14 days from the day they receive the goods.The customer then has a further 14 days from the date they notify the retailer of their cancellation to return the goods. -There are exemptions to online returns which include tailor made/personalised goods.

For Faulty Goods:

Under the Consumer Rights Act 2015, a customer has an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. This right is limited to 30 days from the date the customer took ownership of the goods. If an item is faulty and needs to be returned, the customer does not need to pay postage costs for the return of the faulty item.If a customer is asked to return an item that arrived damaged, not as described or faulty, the retailer should refund the total cost of the return."

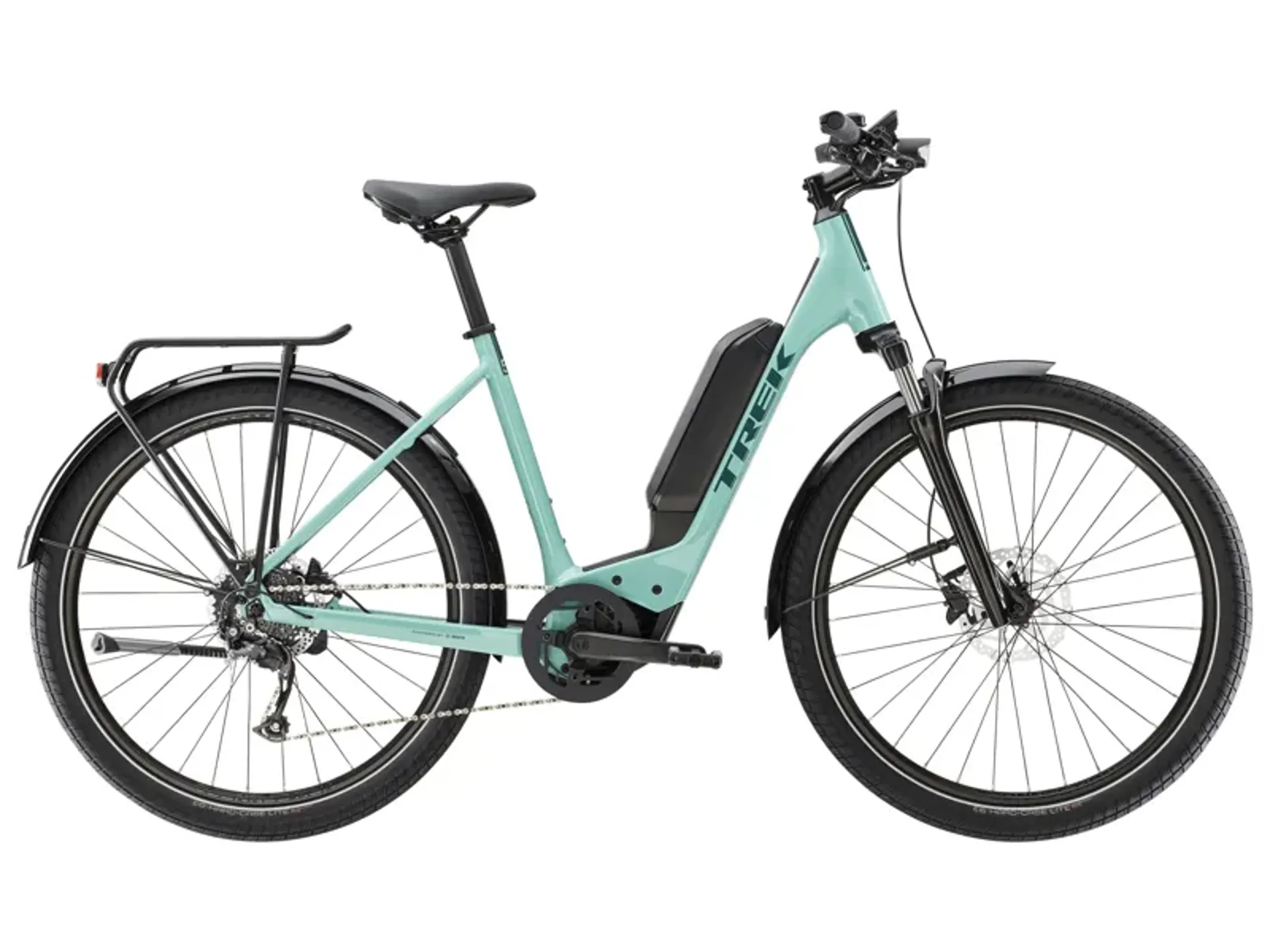

Trek Allant+ 5 2023 Lowstep 545wh Electric City Bike in Blue Sage

Season:2023

Brand:Trek

Code:36911BLUSage

The Allant+ 5 Lowstep is the ultimate e-bike for riders looking to accelerate their commute.

The frame features a step-thru design that simplifies getting on and off, and the new Bosch Smart System motor that offers more connectivity than ever before. Easily pair your smartphone with your bike to log distances and plan routes. Available with your choice of battery size, ranging from 545 to 725 watt hours, so you can take control of your commute and cruise comfortably all the way home.
Technical Information
  • Frame
    High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5mm QR
  • Fork
    SR Suntour NVX30, coil spring, preload adjuster, 100 mm QR, 60 mm travel
  • Max compatible fork travel
    63mm
  • Hub front
    Shimano TX505, CenterLock
  • Hub rear
    Shimano TX505, CenterLock
  • Rim
    Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
  • Tyre
    Bontrager E6 Hard-Case Lite 27.5x2.40" w/reflective stripe
  • Max tyre size
    27.5x2.40"
  • Shifter
    Shimano Altus M2010, 9-speed
  • Rear derailleur
    Shimano Altus M2000, long cage
  • Crank
  • Size:S, M
    ProWheel alloy, 170 mm length
  • Size:L, XL
    ProWheel alloy, 175 mm length
  • Chainring
    ProWheel 40T narrow/wide steel, w/alloy guard
  • Cassette
    Shimano HG200, 11-36, 9 speed
  • Chain
    KMC E9S, 9-speed
  • Pedal
    VPE-857
  • Max. chainring size
    1x: 48T
  • Saddle
    Selle Royal Vivo Moderate Ergo
  • Seatpost
  • Size:S, M
    Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
  • Size:L, XL
    Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
  • Handlebar
    Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
  • Grips
    Herrmans Clik, ergonomic, lock-on
  • Stem
  • Size:S
    Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
  • Size:M
    Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
  • Size:L, XL
    Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
  • Brake
    Shimano MT200 hydraulic disc
  • Brake rotor
    Shimano RT10, CenterLock, 180 mm
  • Rotor size
    Max brake rotor size: 180 mm
  • Charger
    Bosch standard 4A, 230V, smart system
  • Controller
    Bosch Intuvia 100, smart system
  • Motor
    Bosch Performance Line CX, 20 mph (25 km/h in Europe)
  • Light
  • Size:S, M, L, XL
    Spanninga SOLO for e-bike
  • Size:S, M, L, XL
    Herrmans MR4, 120-lumen LED
  • Computer
    Bosch LED remote, smart system
  • Kickstand
    Pletscher Comp Flex 18
  • Cargo rack
    MIK-compatible alloy rear rack
  • Mudguard
    SKS plastic
