Riding around the city is a breeze on the Passage 20 E-Bike.
Riding around the city is a breeze on the Passage 20 E-Bike.
Scott

Scott Passage 20 eHybrid Bike in Highland Green

£3,299.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns




Please contact us on 01382 666644 if you would like to return an item.


For Distance (online & Mail Order) Selling:

Under the
Consumer Contracts Regulations 2014, a customer is allowed to return an item if they simply change their mind. A customer has the right to cancel at any time from the moment they place their online order, and up to 14 days from the day they receive the goods.The customer then has a further 14 days from the date they notify the retailer of their cancellation to return the goods. -There are exemptions to online returns which include tailor made/personalised goods.

For Faulty Goods:

Under the Consumer Rights Act 2015, a customer has an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. This right is limited to 30 days from the date the customer took ownership of the goods. If an item is faulty and needs to be returned, the customer does not need to pay postage costs for the return of the faulty item.If a customer is asked to return an item that arrived damaged, not as described or faulty, the retailer should refund the total cost of the return."

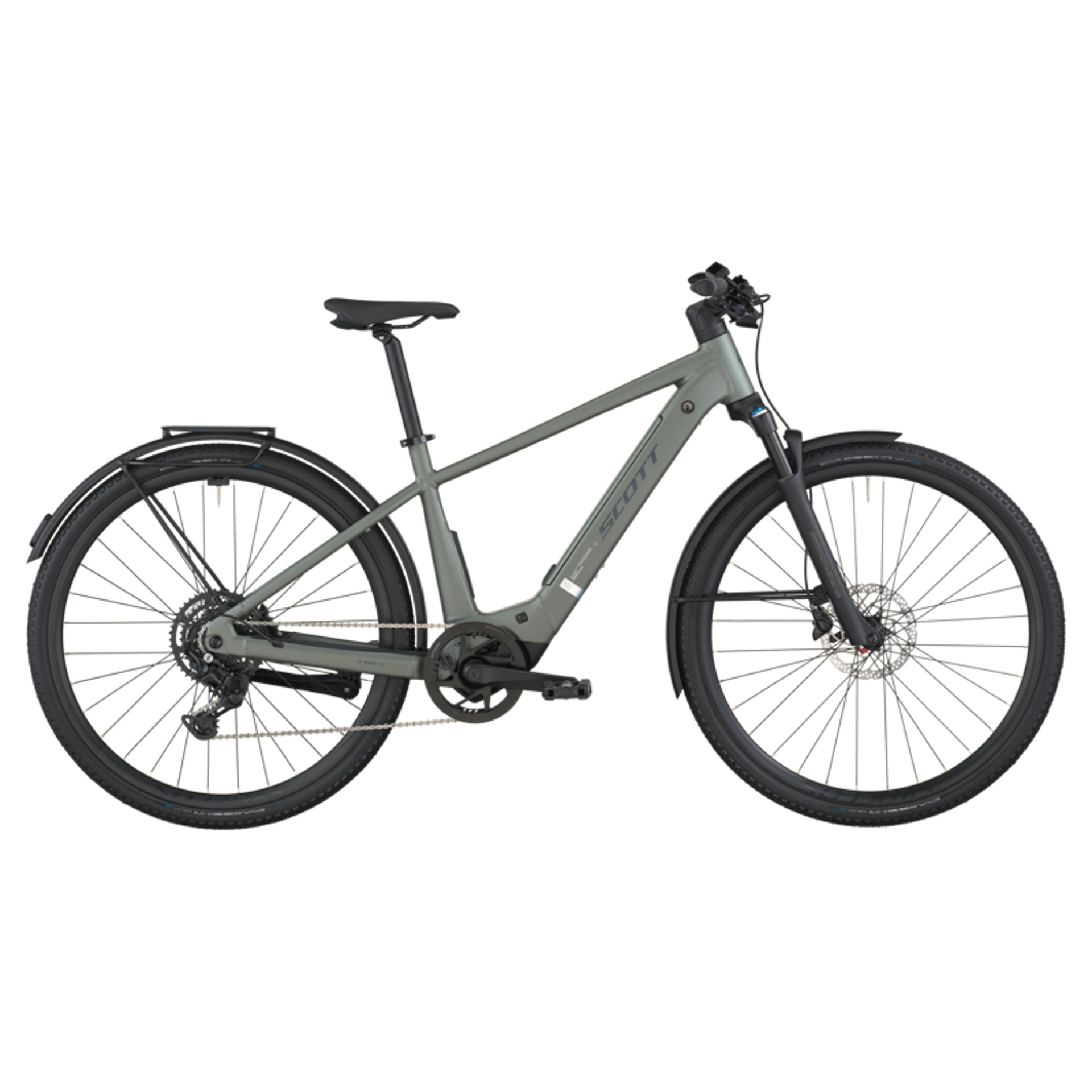

Scott Passage 20 eHybrid Bike in Highland Green

Season:2026

Brand:Scott

Code:42561681130

Riding around the city is a breeze on the Passage 20 E-Bike. Its midweight design centers around a lightweight yet powerful Bosch SX motor and 400Wh battery, which optimizes handling for an effortless ride and supplies all the pep and range you'll need around town.

On the ride, Passage 20 zips around effortlessly, with plenty of power on tap when you need it to flatten hills, navigate traffic, or carry the extra load on your commute. Best of all, its trim frame design and lightweight 2kg motor drive give you the power to own the roads without the cumbersome heft of a heavier urban e-bike.

Scott equipped this Passage 20 with a 75mm suspension fork to soften rough pavement on your routes and 45mm tires to add stability and durability no matter what comes your way. Its 9-speed drivetrain gives you the gearing range to ride around town like a pro, and the rear rack sets you up to stow the day’s essentials.

Features:

  • Passage eRIDE Alloy Frame
  • Bosch SX, CT400 SmartSystem Engine System
  • SR Suntour 75mm Fork
  • Shimano Cues 9 Speed Drivetrain
  • Shimano Disc Brakes
  • Lezyne front light / Syncros integrated rear lights
  • Racktime Micro rear rack, Snap it 2.0 compatible, 8Kg
Technical Information
  • Frame
    Alloy S-XL=29", 6061 Alloy custom butted tubing Top extraction battery
  • Travel
    75mm
  • Fork
    SR Suntour NRX32-E Air LO R, Tapered, 15x100 bolt Axle, Remote Lock Out, Steel Steerer, 75mm Travel
  • Drive Unit
    Bosch Performance Line SX (BDU314Y) EU: 25kmh
  • Battery
    Compact Tube 400Wh
  • Display
    Bosch Purion 200
  • Charger
    2A Charger
  • Rear Derailleur
    Shimano CUES RDU4000GS 9 Speed
  • Shifters
    Shimano CUES SLU4009RC, 9 Speed
  • Crankset
    FSA CK-220 170mm
  • Chainguide
    Syncros
  • Chainring
    FSA 38T
  • Chain
    Shimano LG500
  • Cassette
    Shimano LG300, 11-46T
  • Brakes
    Shimano BR-MT200 Disc
  • Rotor
    Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm
  • Handlebar
    Syncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount
  • Seatpost
    Syncros M3.0, 31.6
  • Seat
    Syncros Capilano
  • Headset
    Acros, 1.5"- 1.5" semi integ. OD 50/61mm, ID 44/55mm
  • Hub (Front)
    Shimano HBTC50015B CL, 15x100mm
  • Hub (Rear)
    Shimano FHTC500HMB CL, 12x142mm
  • Spokes
    Black Spokes
  • Rims
    Syncros X15 Disc
  • Front Tire
    Schwalbe G-One Overland 365 Performance, 700x45C
  • Rear Tire
    Schwalbe G-One Overland 365 Performance, 700x45C
  • Lights
    Lezyne Fusion E550SM front light Rear Supernova TL3Z
  • Rack
    Racktime Micro Rack SnapIt 2.0 8KG
  • Pedals
    Marwi SP-827
  • Extras
    Alumee alloy profile Fender Passage Kickstand
  • Approx weight in KG
    21.3
  • Approx weight in LBS
    46.96
  • Max. System Weight
    130kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
